ZH80d
Starting at $64,900
MSRP on entry package, transportation and preparation fees may vary based on selection.

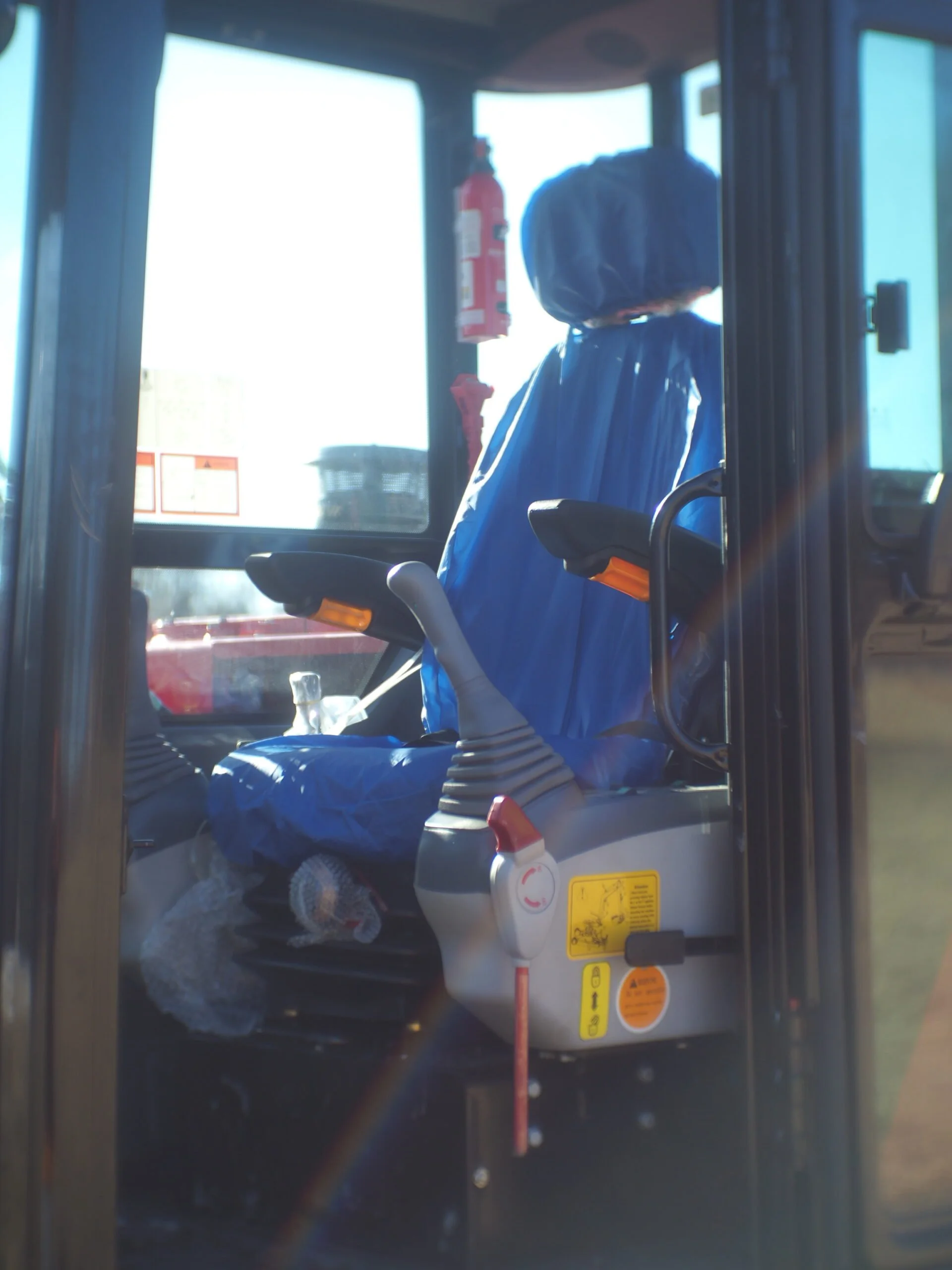

The ZH80D comes equipped with a Yanmar 4TNV98CT-VSY diesel engine (53.7 KW @ 2100 RPM), Eddie drive motor, 2 Speed, oil cooler, pilot control hydraulic joysticks, glow plugs, and an enclosed cab with heat and a/c.
-
Operating Weight – Steel Tracks 17,700 lbs
Engine Yanmar 4TNV98CT-VSY diesel engine
(53.7 KW @ 2100 RPM)
(best in class fuel consumption
& the cleanest engine in its category)
Travel Speed <5 mph
Machine Width 7’ 5”
Machine Height 9”
Ground Clearance 18″
Track Length 9′ 4″
Track To Blade 10′ 6″
Track to Track Width 79 1/2″
Track Size 450x154x39
Max Digging Depth 12′ 10″
Max Digging Height
Max Dumping Height
Max Reach 18′ 8″
Max Digging Radius 22′ 4″
Hydraulic Flow Rate 47 gpm
Bucket Size 26″ Tooth
-
Floating Blade
Window Tint
Hydraulic Quick Connect
Bolt-on Rubber Pads
-
Powertrain items consist of the engine, both drive motors, hydraulic pump, swing motor, and central pivot valve body. Warranty does not cover wear items such as lines, cylinders, tracks, pins, blades, seat, undercarriage, etc
